As a professional manufacturer of industrial electric furnaces, Luoyang Shennai has always been at the forefront of technology. Today, let's share some basic configurations of the medium frequency furnace.

Any set of industrial equipment needs some supporting equipment to play its maximum role.

As the mainstay of many equipment in the casting industry, the medium frequency furnace is not only composed of a furnace body.

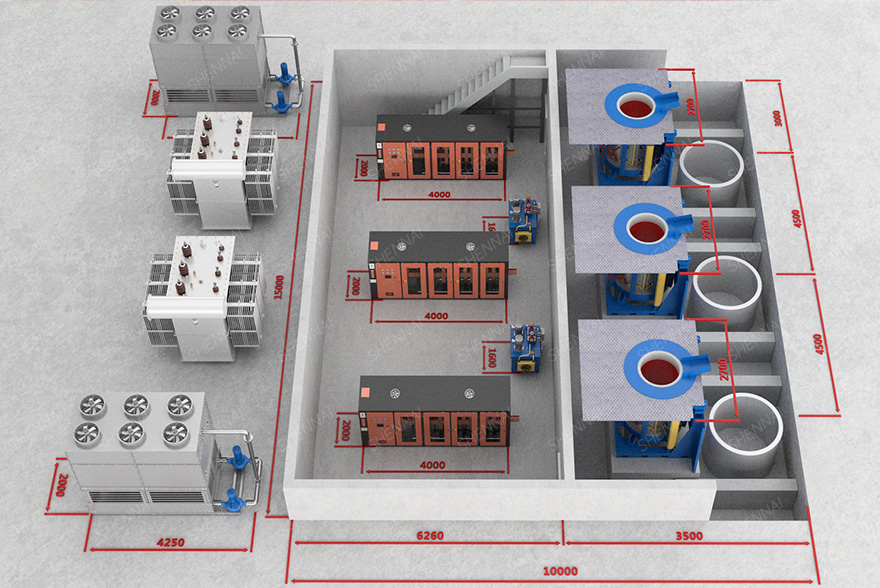

In addition to medium frequency furnace body, power supply and electrical control part, transmission device, water cooling system. They are indispensable equipment for medium frequency furnace.

What role do these auxiliary devices of the intermediate frequency furnace play in the working process of the intermediate frequency furnace?

Furnace body

This is the most important part. The low position of the furnace body in the medium frequency furnace composition is equivalent to the human body.

Generally, medium and small medium frequency furnaces are equipped with two furnace bodies, one for normal production use, and the other for standby, in case of emergency. The furnace body mainly includes furnace cover, inductor, crucible, furnace frame and other parts.

Intermediate frequency power supply and electrical control part

The intermediate frequency power supply and electrical control part of the intermediate frequency furnace is like the brain of the intermediate frequency furnace, controlling the operation of each part of the intermediate frequency furnace.

The intermediate frequency power supply and electrical control include high voltage or low voltage switch cabinet, intermediate frequency power supply (intermediate frequency generator set or thyristor converter), power conversion switch, compensation capacitor, intermediate frequency control cabinet or furnace front power distribution console and other components.

These components work together to provide conversion, power distribution, power generation and other functions for the use of the medium frequency furnace, ensuring the normal operation of the medium frequency furnace.

transmission

If the medium frequency power supply and electrical control part are like the brain of the medium frequency furnace, then the transmission device is the meridian nerve of the medium frequency furnace.

The transmission device includes mechanical or hydraulic devices such as the movement of the furnace cover, the operation of the smoke hood, the tilting of the furnace body, and the resetting, which drives the operation of all parts of the medium frequency furnace and also facilitates the use of the medium frequency furnace.

Water cooling system

In addition to the three parts listed above, the water cooling system is also an important part of the intermediate frequency furnace, which mainly plays a role in cooling the intermediate frequency furnace, etc. The water cooling system includes the water pump, cooling tower, water tank and other components of the intermediate frequency furnace.

The above are the four supporting devices composed of the intermediate frequency furnace. The operation of the intermediate frequency furnace needs the cooperation of the four supporting devices to play its maximum role.

Welcome to Luoyang Shennai to learn more about medium-frequency furnace.
