Detailed introduction

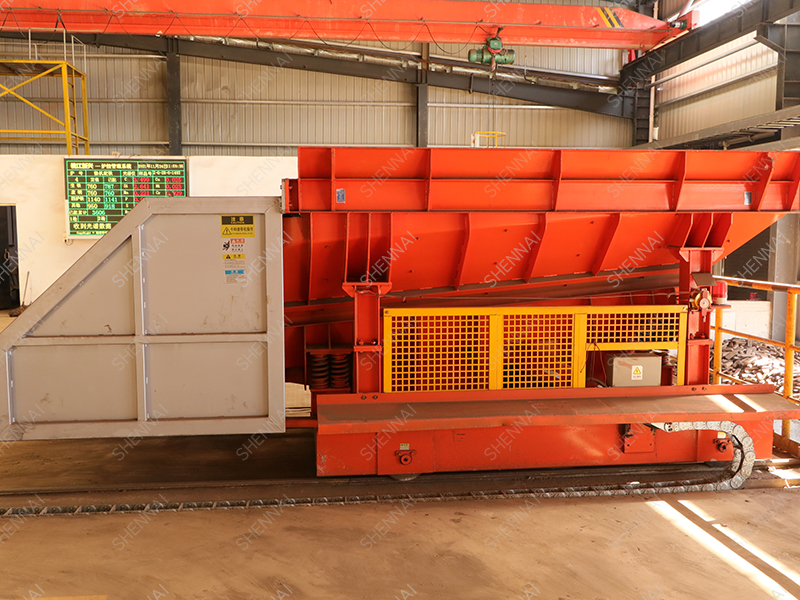

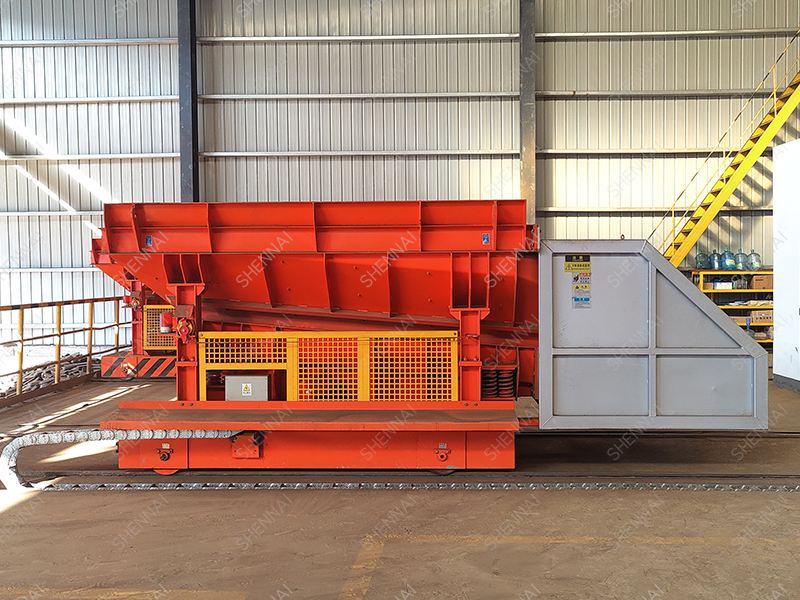

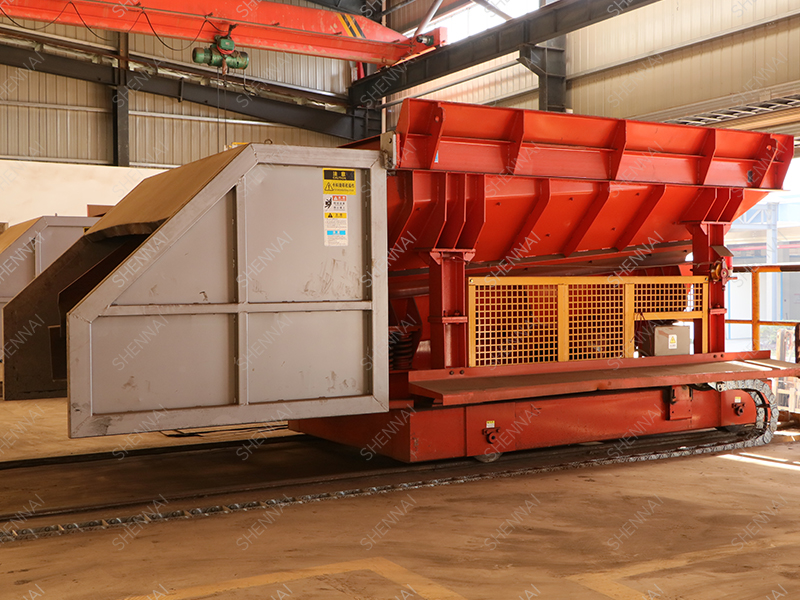

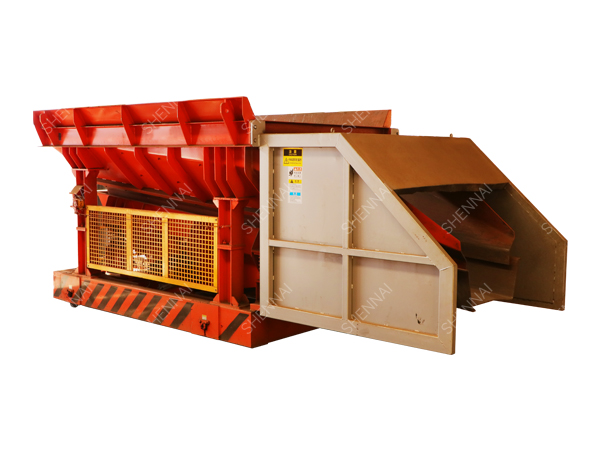

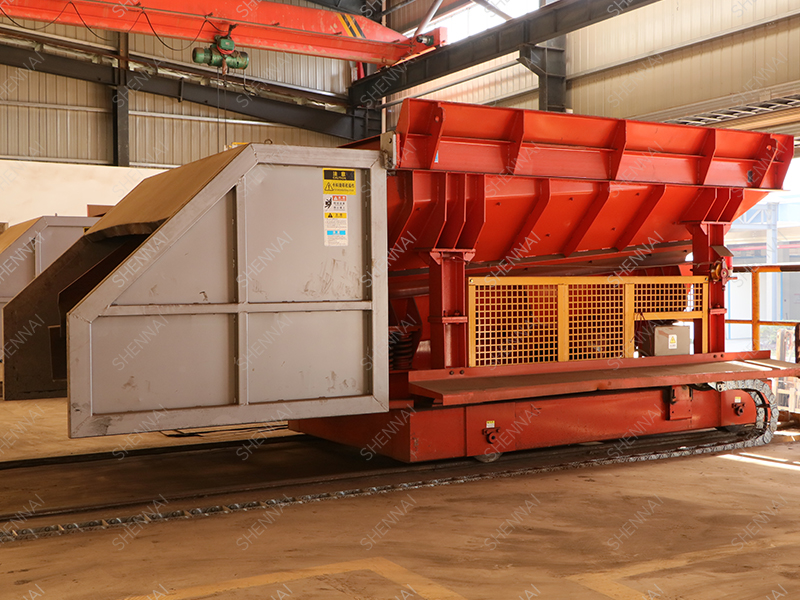

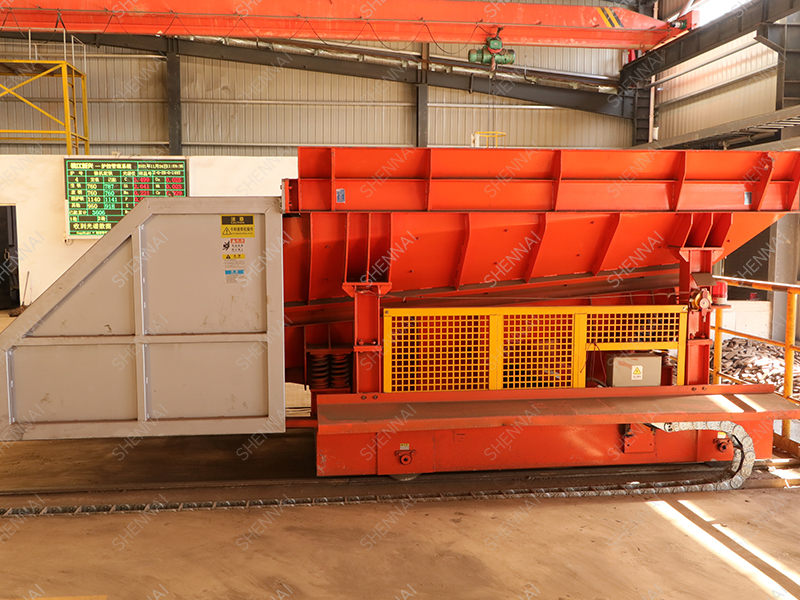

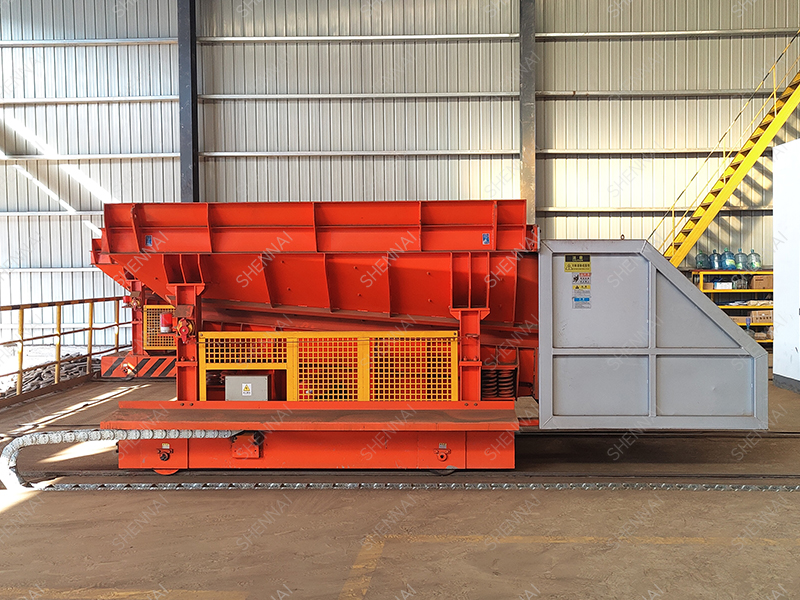

• Electric furnace feeding car is a vibration feeding device specially designed and developed for smelting electric furnace. The car adopts the vibration feeding method, which is easy to use, stable in feeding, can reduce the impact of the block on the furnace body to a minimum, and the feeding is more in line with the process requirements.
• The electric furnace charging car can be divided into two types: one-way straight type and two-way straight type according to different walking directions. One-way straight type, each electric furnace is equipped with a feeding car. Two-way straight type, one feeding car can meet the feeding needs of multiple electric furnaces, and the feeding car can move horizontally and vertically.

• Application range
  The furnace charger vehicle is applied in the medium frequency furnace steel making workshop,installed lengthways behind the furnace.One set of furnace is equipped one or two vehicles(It depends on the size of furnace)

Main structure

• Vehicle frame
  It is formed by welding of profile steel and steel plates,which plays the role of supporting vehicle hopper, installing hydraulic station, electric control system and counterweight.
• Vehicle hopper
  It is formed by welding of profile steel and steel plates,which is used for loading the scrap steel.
• Driving and trailing wheel assembly
  The driving wheel assembly is made up of motor, reducer, gear and wheel assembly, driving the trailing wheel to run at a certain speed.
• Cable reel
  It is installed under the vehicle frame, and it plays the role of rolling up and disentangling the cable while driving the furnace charger vehicle.
• Hydraulic circuit system
  It is composed of hydraulic station, oil pump motor, air filter, oil return filter, valve block and oil pipe, which plays the role of supplying pressure and driving cylinder to tilt.
• Electric control system
  Keep away from heat source, remote control with remote control function, automatic stop pump and pressure relief, start runing smoothly and ensure operation safety.

• Main technical parameters(Maybe changed after exactly design)
  1)Loading of vehicle hopper:≤3Tons
  2)Tilting Angle range:0°~28°
  3)Tilting cylinder stroke:0~730mm
  4)Size(L×W×H):6600×2120×1550mm
  5)Tilting force:0~10Tons
  6)System pressure:0~16MPa
  7)Driving motor power:1.5KW×2 sets
  8)Moving speed:20m/min
  9)Space between tracks:1300mm

The technical features of the electric furnace feeder are:

• The car body and tank body are replaceable wear-resistant linings.
• The feeding process of the electric furnace charging car is controlled by the program controller, and the program control and the electric furnace melting system are interlocking control systems, with manual and automatic functions.
• The electric furnace charging car has stepless speed regulation function when it starts and stops.
