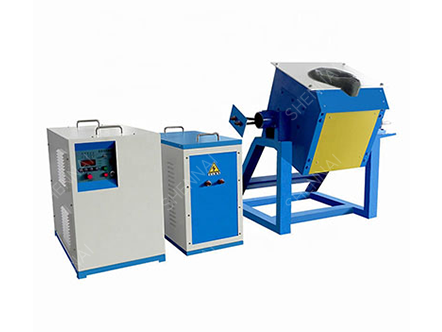

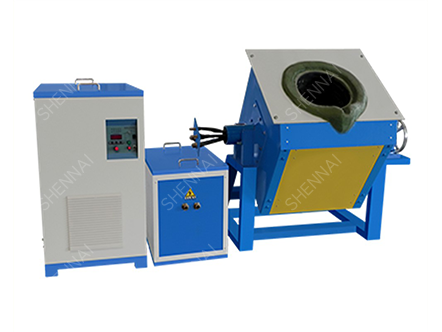

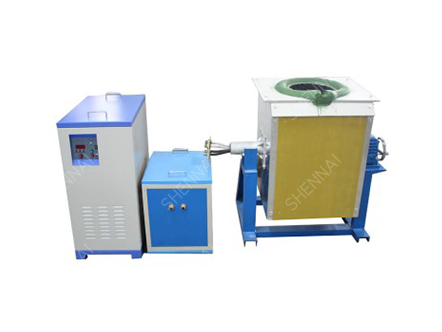

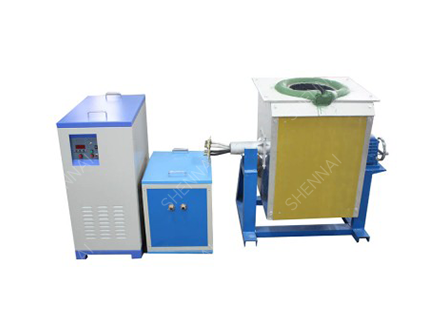

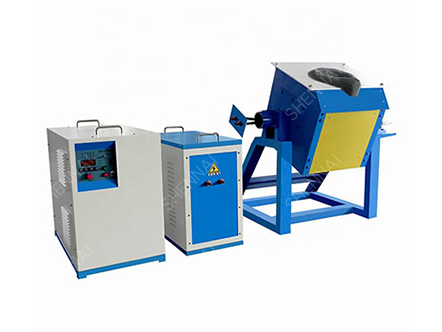

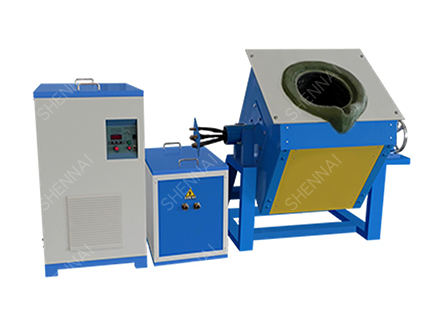

IGBT medium frequency induction melting furnace with a small capacity of 10kg-250kg is suitable for melting iron, steel, stainless steel, copper, aluminum and other metal materials with a melting point below 1800 °C. The melting machine is cooled by water, and the melting time of each pot is 30-40 minutes. It has the advantages of fast melting speed, energy saving and low harmonic pollution.

Infrared temperature sensor, temperature controller and water cooling system can also optional.

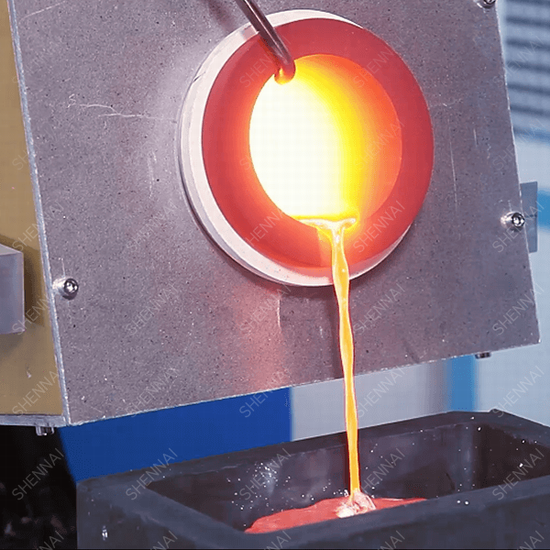

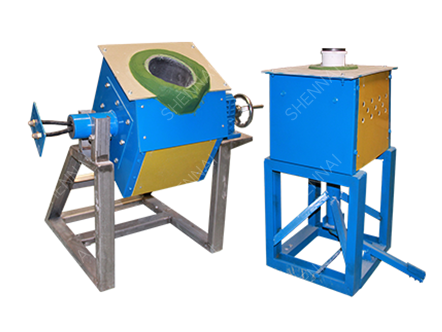

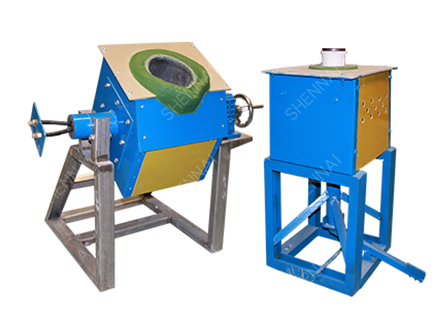

Three types of induction melting furnaces can be selected according to the way of pouring out, they are tilting furnace, push-up furnace and stationary furnace.

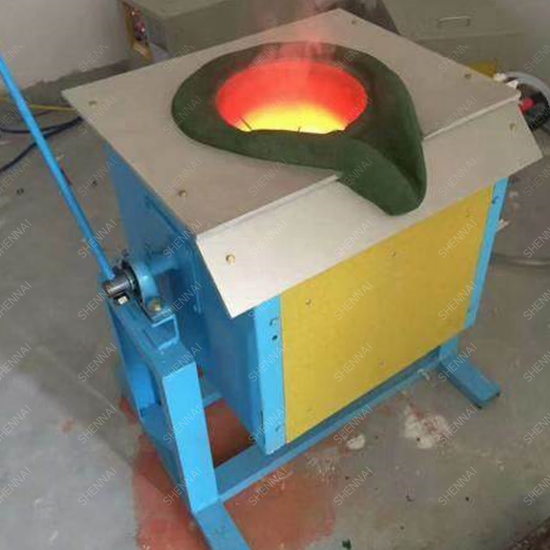

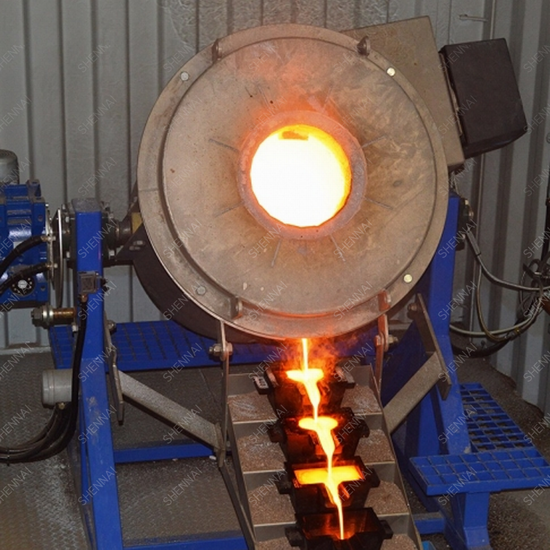

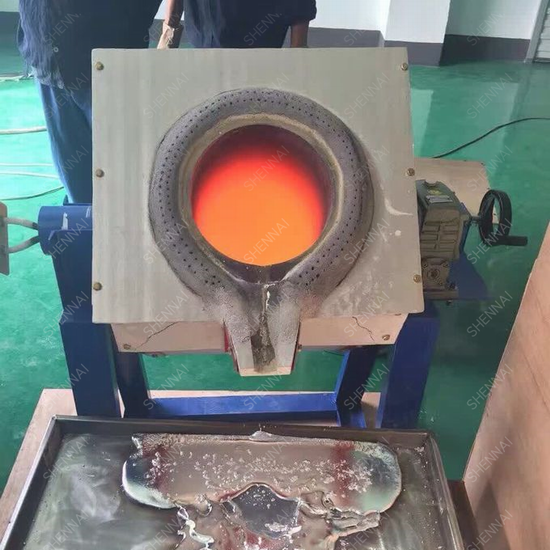

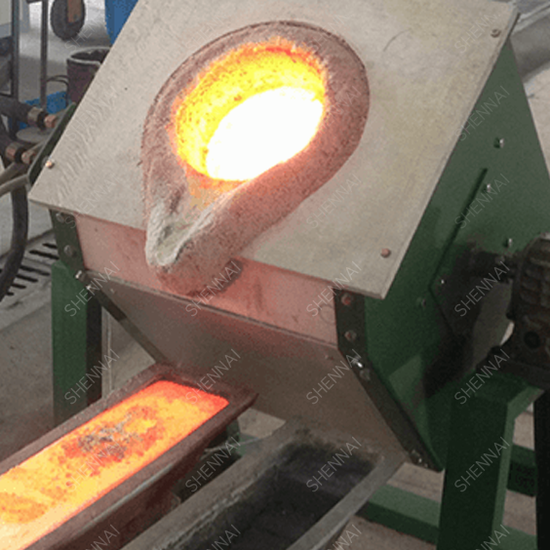

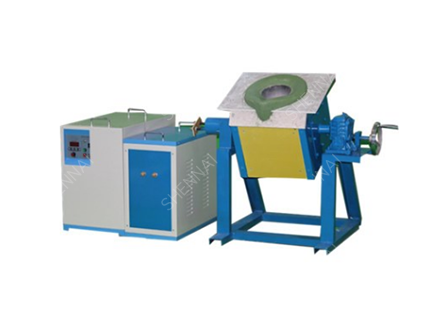

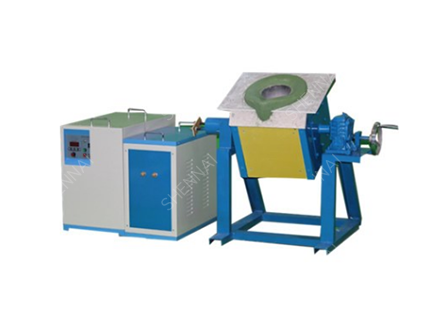

According to the method of tilting, tilting furnace is divided into three kinds: Manual tilting furnace, Electrical tilting furnace and Hydraulic tilting furnace.

The table below lists the main models and recommended maximum melting abilities. First time About 50 to 60 minutes are needed to finish one melting process at cool status of the induction furnace, at hot status of the induction furnace, about 30 minutes are needed.

Basic parameters for reference only

If you want to know more, you can leave a message telling us what you need

IGBT Induction melting furnace selling point:

Adopt Simens IGBT power device.

Fast heating: the fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.

It has good Electromagnetic stirring stirring effect, which is conducive to the temperature of the smelting metal and the uniformity of the structure, which is beneficial to scumming and reducing impurities.

The frequency range can be from 1KHz to 30KHz, and the induction coil and matching capacitor box can be designed according to the specific requirements according to the melting amount.

High heating efficiency and low noise during operation.

Our Service

Providing one-stop turn-key service of desianing, manufacturing, installation, commissioning
Providing professional proposal for customers investment
Providing foundation layout
Providing arrangement drawing for customers project
Providina technical support
Providing after-service trackina service
Providing quality warranty
